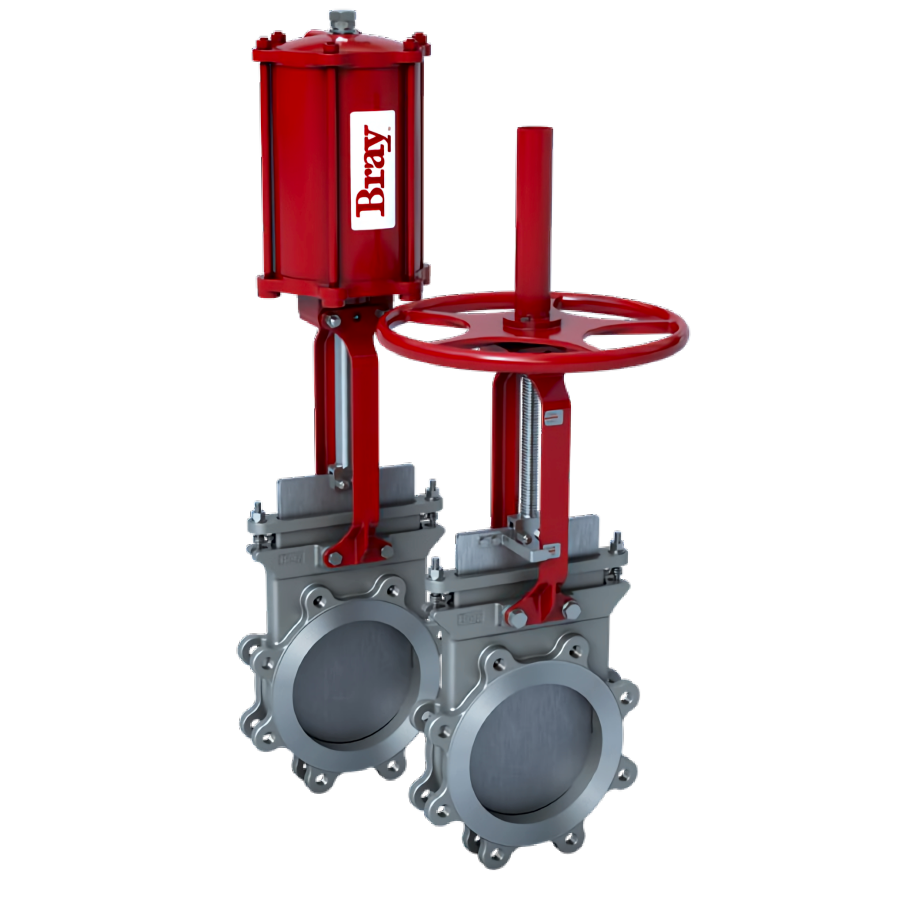

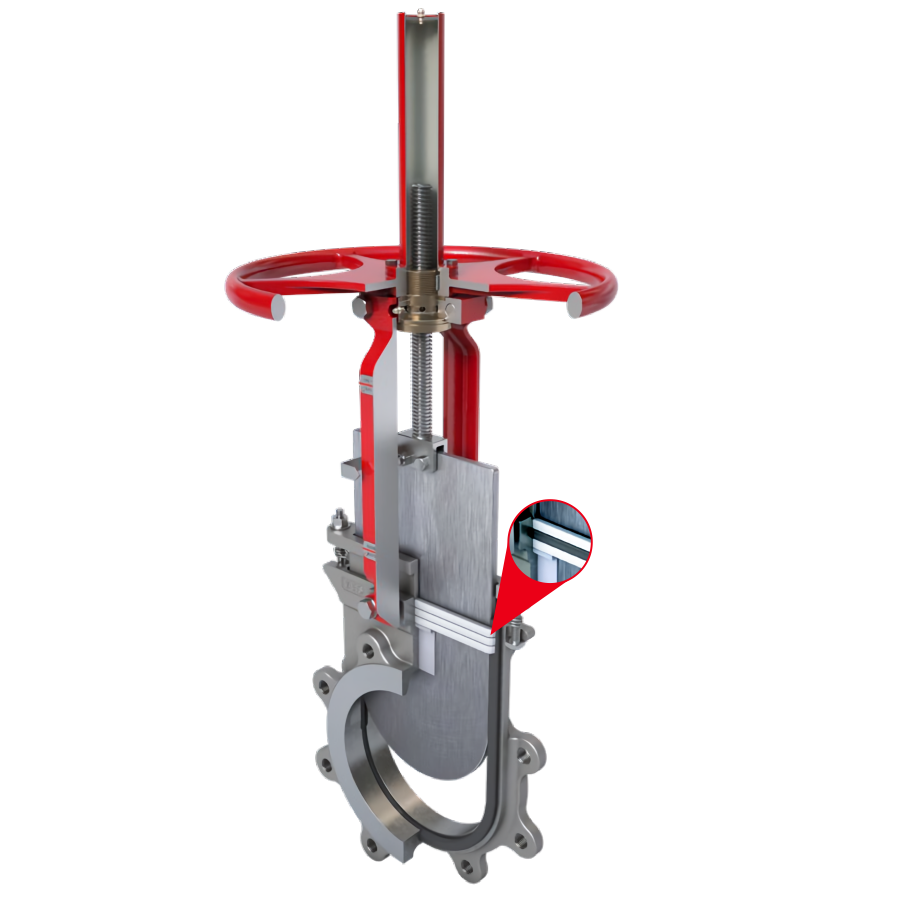

The Bray Series 740 Bidirectional Knife Gate Valve showcases advanced industrial valve technology, featuring a robust one-piece, cast body design for optimal performance across diverse applications. Its replaceable soft seat ensures resilience durability and adaptability for automated processes, facilitating precise on/off operations.

 The one-piece cast body seamlessly integrates with a flexible wire-reinforced elastomer seat, delivering bidirectional zero leakage shutoff in various industrial settings.

 With CRN accreditation, PED Category I Module A compliance, and AWWA C520 certification, the Series 740 exceeds industry standards. Rigorous testing, including shell and seat tests per MSS SP-151, validates its reliability, reinforced by factory cycle tests and a Certificate of Design Conformance.

 The mechanically and geometrically retained steel-reinforced elastomer seat guarantees bidirectional zero leakage shutoff, enhancing operational efficiency across industries such as Pulp & Paper, Power, Wastewater, Chemical, and Ethanol.The Bray Series 740 Knife Gate valve is known for its reliability, versatility, and superior performance, making it the preferred solution for demanding industrial applications worldwide.

• Designed for easy, quick conversion between manual and pneumatic actuation. Featuring a lubricant injection port for continuous, smooth operation with minimal maintenance.
• Clevis design and horizontal bolting stabilizes gate ensuring proper alignment.
• Standard multi-layer square packing provides exceptional gland sealing.
• Optional energized quad seal packing for enhanced gland sealing.
• Wiper/Anti Extrusion Ring minimizes the gap between the body and the gate
• Unrestricted flow path with minimal pressure drop achieved through full port valve design
• Deflection resistant gate design ensures consistent alignment for industry leading durability
• Replaceable flexible wire reinforced elastomer seat ensures bidirectional zero leakage shutoff

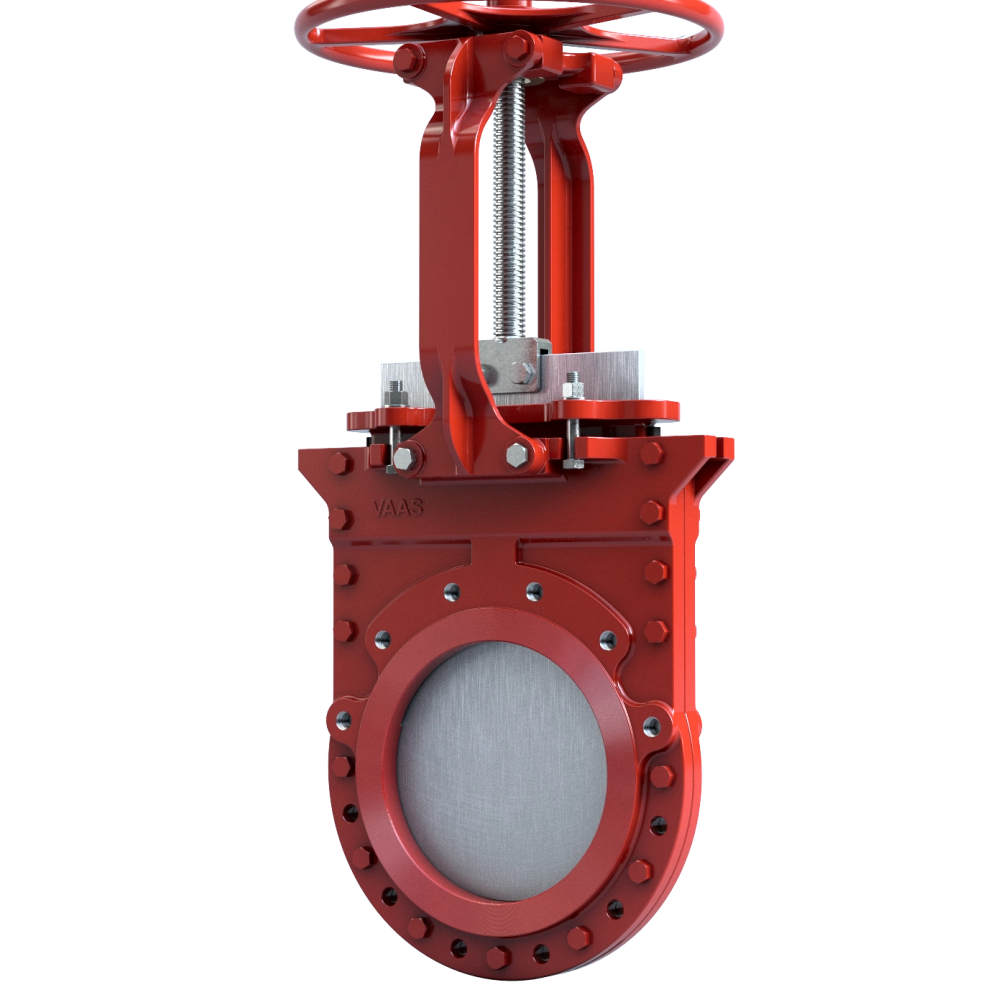

 The Bray Series 752 Bidirectional Knife Gate Valve is an engineered solution designed for precise and reliable handling of slurries. Its innovative design, featuring a two-piece bolted body and a steel-reinforced molded perimeter seat, ensures bidirectional zero leakage shutoff even under demanding operational conditions. With a diverse range of actuator options including Direct Mounted Handwheel Standard (2"-10"), Bevel Gear Standard (12"-24"), Pneumatic, Hydraulic, and Electric, it addresses various operational requirements.

 Primarily utilized in Chemical, Mining, and Power industries, the Series 752 demonstrates excellence in valve technology, delivering superior performance, durability, and adaptability

 Configured in a two-piece bolted wafer design, optimizing space utilization and offering installation flexibility. Packing Options: PTFE impregnated synthetic fiber, PTFE w/Buna-N Quad Seal, PTFE w/Viton® Quad Seal.

• Pressure rating of 240psi (16bar), accommodating a wide spectrum of industrial applications.
• Compliant with ASME B16.5 CL150 drilling standards, ensuring seamless compatibility and integration within existing systems.
• Configured in a two-piece bolted wafer design, optimizing space utilization and offering installation flexibility.
• Packing Options: PTFE impregnated synthetic fiber, PTFE w/Buna-N Quad Seal, PTFE w/Viton® Quad Seal.

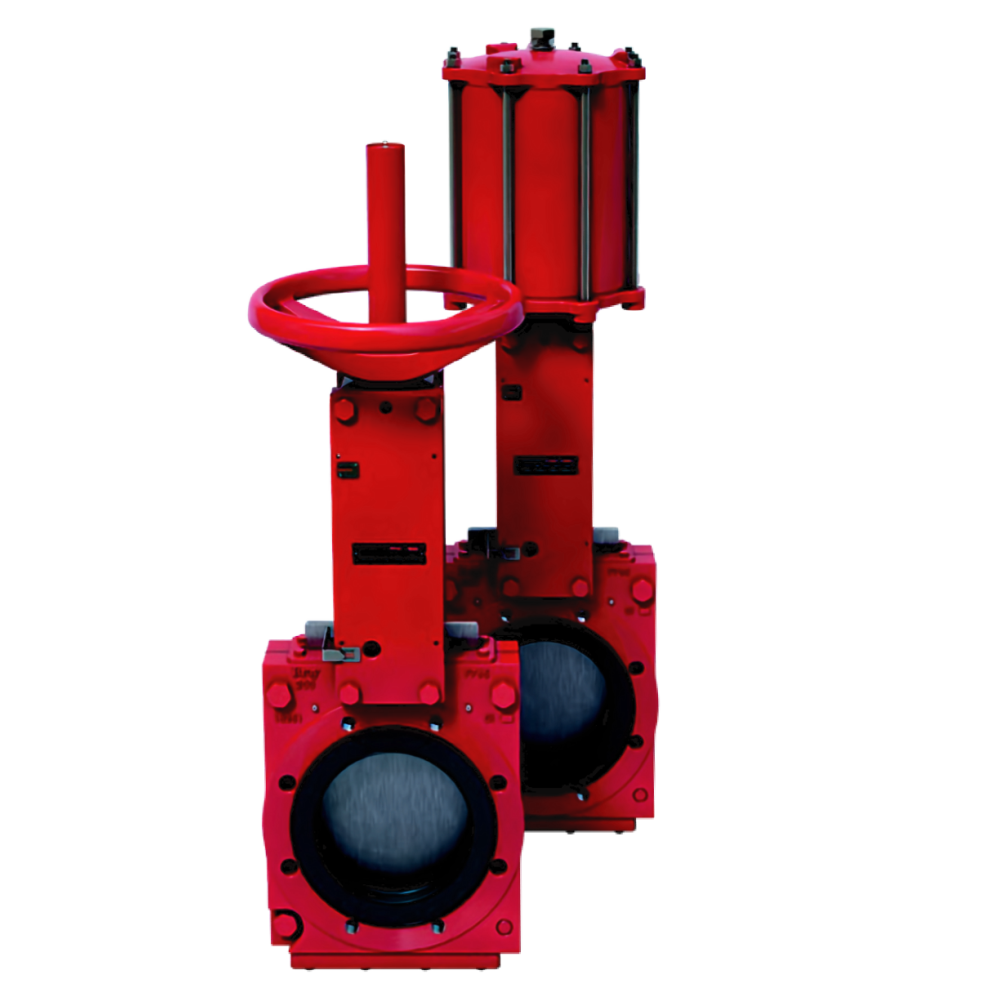

 The Bray Series 765 is a bidirectional slurry valve, designed for demanding slurry applications. Twin elastomer seats and push-through gate design facilitate self-cleaning and prevent media build up.

 The durable ductile iron body is offered in a compact wafer style. When fully open, the valve bore offers no resistance to line media.

 Designed for easy, quick conversion between manual and pneumatic actuation. Featuring a lubricant injection port for continuous, smooth operation with minimal maintenance.. Secondary wiper seal extends gate life and prevents discharge from top of valve. Metal-reinforced, elastomer sleeves provide energized, zero leakage shutoff in both directions. In the open position, the energized sleeves shield all metal components from direct contact with the flowing process media.. Robust gate available in a wide range of corrosion resistant alloys to suit the application.

•  Designed for easy, quick conversion between manual and pneumatic actuation. Featuring a lubricant injection port for continuous, smooth operation with minimal maintenance.
• Secondary wiper seal extends gate life and prevents discharge from top of valve.
• Metal-reinforced, elastomer sleeves provide energized, zero leakage shutoff in both directions.
• In the open position, the energized sleeves shield all metal components from direct contact with the flowing process media.
• Robust gate available in a wide range of corrosion resistant alloys to suit the application.
• Unrestricted flow path with minimal pressure drop achieved through full port valve design for extended sleeve life.
• Ample clearance for push-through allows complete gate closure.
• Compact wafer body allows for easy installation and is drilled and tapped to ASME B16.5 CL150 flange patterns as standard. Other drilling options available upon request.
• Drain plate with tapped purge ports provided as standard, allowing for safe discharge of media and easy flush water connection.
• Protective rod boot/stem cover is standard on all sizes.
• Upper stem protection is standard on all sizes.

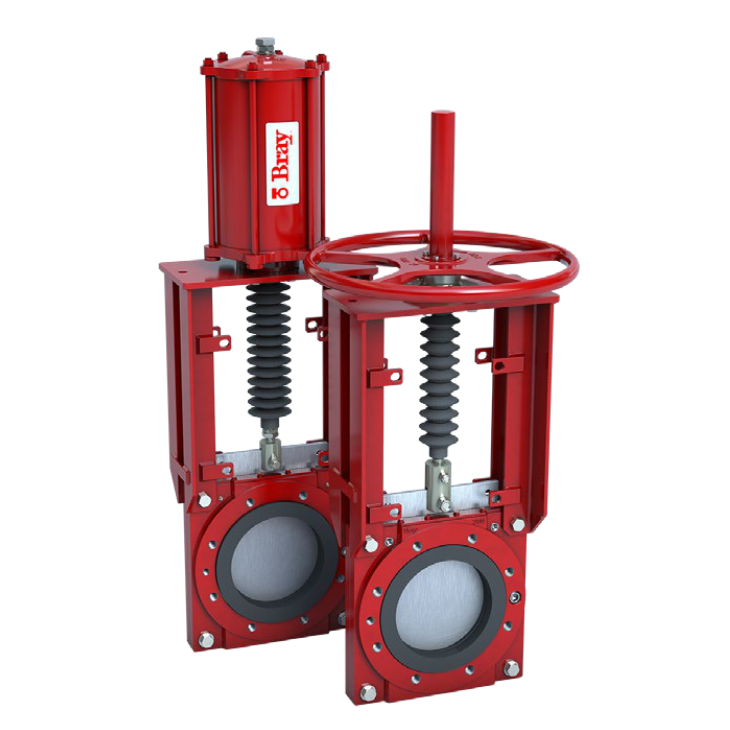

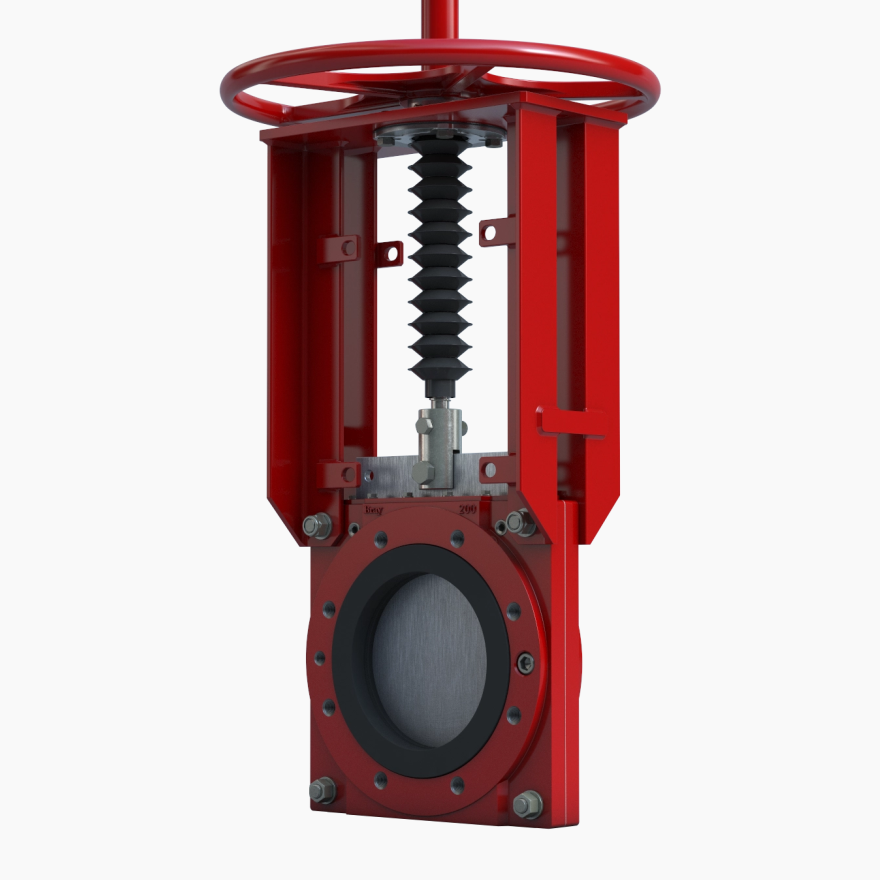

 The Knife Gate Valve Series 768 an engineered solution for heavy-duty slurry handling applications. With a compact wafer face-to-face dimension, this valve provides an efficient and space-saving solution for diverse slurry handling needs, equipped with Bray SlurryShield Technology and can be a direct replacement for conventional knife gate valves.

 The valve features a design incorporating twin elastomer sleeves and a self-cleaning gate. The gate is designed to withstand 1.1 times the pressure rating of the valve, ensuring durability in high-pressure applications. Higher pressure ratings can be achieved by utilizing higher yield gate materials such as Duplex 2205 or 17-4PH stainless steel. Sleeves can be replaced onsite enabling the valve to return to service quickly for a long service life.

 Certifications include the CRN and PED Category I Module A for Group 2 liquids, ensuring compliance with industry standards and regulations.

 The Knife Gate Valve Series 768 provide a guarantee in design and performance, providing effectiveness in heavy-duty slurry handling applications is such as mining, HPAL/POX, Chemical among other industries.

• Protective stem cover is standard increasing cycle life in hazardous environments.

• Fully encapsulated J-ring providing sleeve reinforcement and memory assist, guaranteeing bidirectional zero leakage performance.

• In the open position, the energized sleeves shield all metal components from direct contact with the flowing process media.

• Robust gate designed for slurry applications and available in a wide range of corrosion resistant alloys.

• Full port design provides unobstructed flow path, extending sleeve life and minimizing pressure drop across the valve.

• Two-piece bolted body allows for easy maintenance and is drilled and tapped to a variety of flange standards.

• Optional bottom flush plate with tapped ports allows for safe discharge of media and easy flush water connection.

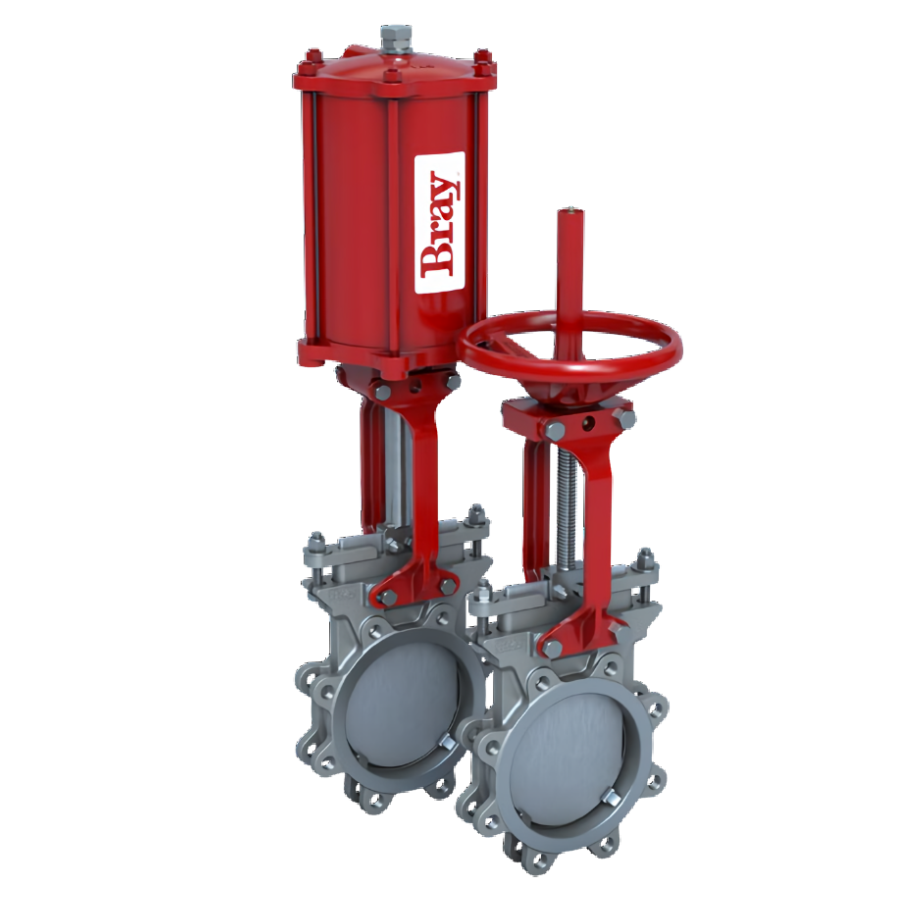

 The Bray Series 940 Unidirectional Knife Gate Valve, it is designed with a single-piece cast body design. It is available with integral metal or replaceable soft seats, allowing for customization based on specific application requirements. The valve is easily automated for on/off applications, enhancing operational efficiency. Whether you are dealing with abrasive materials or corrosive substances, this valve delivers optimal performance.

 From wastewater treatment plants to mining operations.With integration into automated systems, this valve streamlines operations and reduces the need for manual intervention, minimizing downtime and optimizing productivity. Each valve undergoes testing procedures including shell and seat tests as per MSS SP-151, along with factory cycle tests.

• Designed for easy, quick conversion between manual and pneumatic actuation. Featuring a lubricant injection port for continuous, smooth operation with minimal maintenance
• Clevis design and horizontal bolting stabilizes gate ensuring proper alignment
• Standard multi-layer square packing provides exceptional gland sealing
• Optional energized quad seal packing for enhanced gland sealing
• Standard integral metal seat with optional replaceable Class IV metal or Class VI resilient seats
• Deflection resistant gate design ensures consistent alignment for industry leading durability
• Unique body design with no dead pockets enables self-draining of valve
• Lugged body suitable for all mounting orientations including dead-end service

 The Bray Series 941 Knife Gate Valve offer both metal and soft seating options to provide various unidirectional sealing requirements. Rounded gate edges enable longer packing life and increases valve durability, whether dealing with clean, dirty, corrosive, abrasive, viscous, or high-temperature media.

 Engineered for general-purpose on/off service and isolation, the Series Knife Gate 941 valve offering reliable operation in applications such as paper stock, liquor services, hot gases, mining, petroleum products, process fluids, and chemicals.

 Explore optional enhancements including Gate Guards, Open/Closed Lockouts, Limit Switches, Solenoid Valves, and Fail-Safe Systems.

• Operators options: Hand Wheel, Bevel Gear, Electric, Pneumatic and Hydraulic.
• Testings: Shell and seat test per MSS SP-151, Factory cycle test and Certificate of design conformance is available with every valve.
• Pressure Ratings: Unidirectional, 2" – 24" 150 psi.

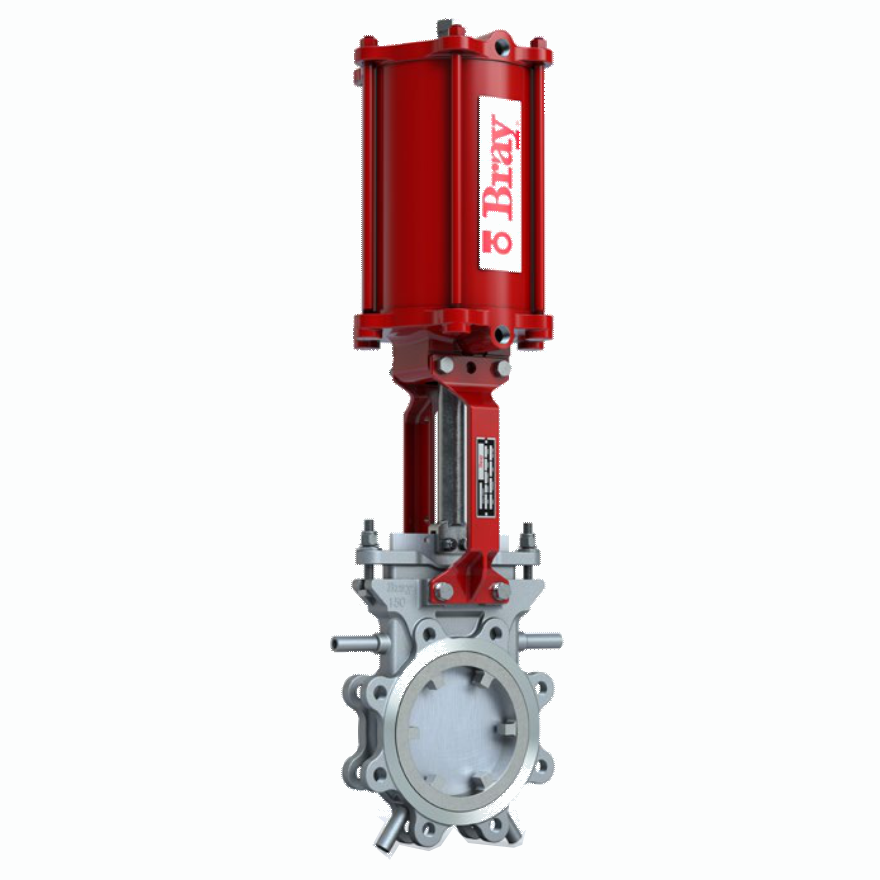

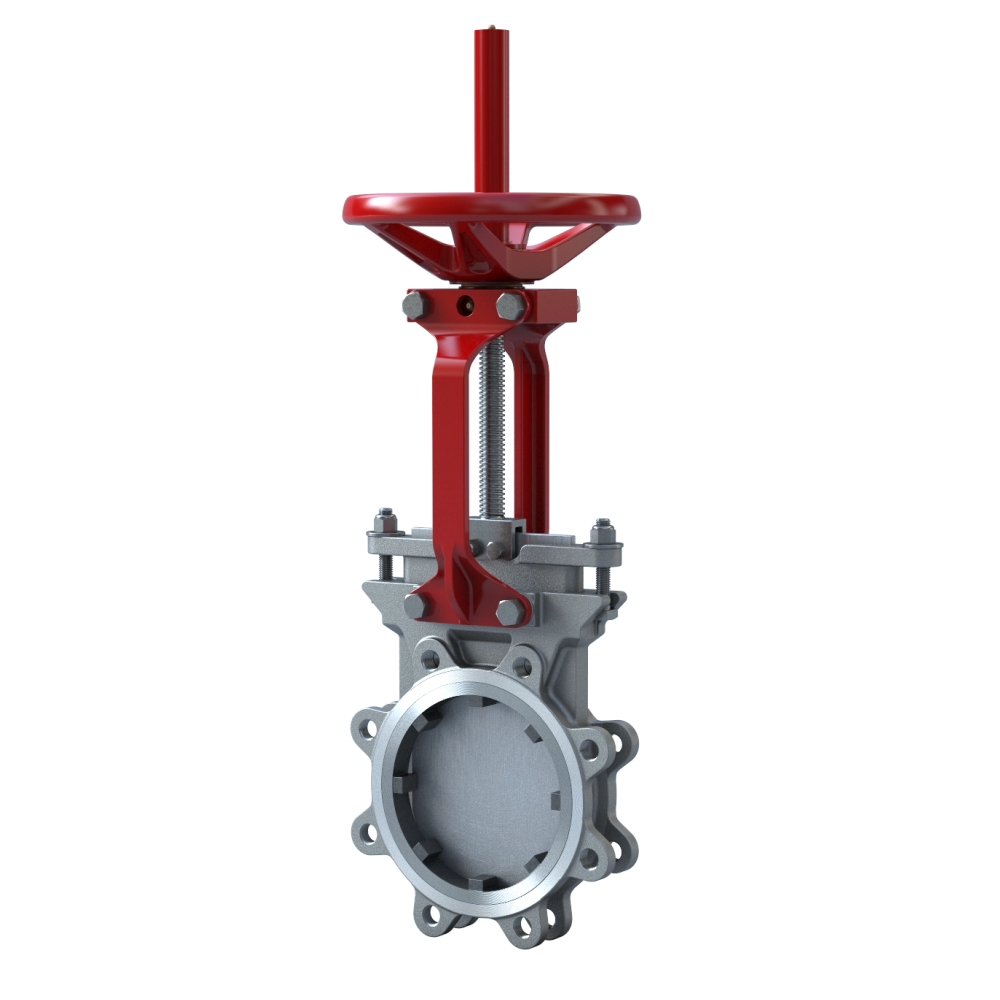

 Bray's Series 942 Vortex Breaker Knife Gate Valve is designed to meet the demands of on/off isolation service within pulp and paper recycling and rejection applications. It excels in high-cycle services, where robust shearing capabilities are paramount, particularly in environments with cyclone separators and recycle high-density cleaners.

 The Bray Series 942 Vortex Breaker Knife Gate Valve presents an engineered solution featuring a standard replaceable Vortex Breaker. This feature serves to disrupt cyclonic flow formation, preventing premature gate and body damage and ensuring prolonged operational efficiency and reliability. The Hi-Chrome vortex breaker (500 HB) designed to disrupt cyclonic flow formation of reject materials (staples, wire, nails, sand, etc.) provides extended service life.

 The adaptability of the Bray Series 942 Vortex Breaker Knife Gate Valve spans multiple industry applications. From Knotter to Rejects, Pulpers, HD Cleaners, Cyclone Separators, and Junk Traps.

• Designed for exceptional performance in knotters, rejects, pulpers, scavengers and cyclone cleaners.
• Specifically designed for high-cycle applications.
• Replaceable Vortex Breaker with Hi-Chrome and tungsten carbide overlay for extended duty.
• Standard integral metal seat.
• Deflection resistant gate design ensures consistent alignment for industry leading durability.
• Unique body design with no dead pockets enables self-draining of valve.
• Lugged body suitable for all mounting orientations.

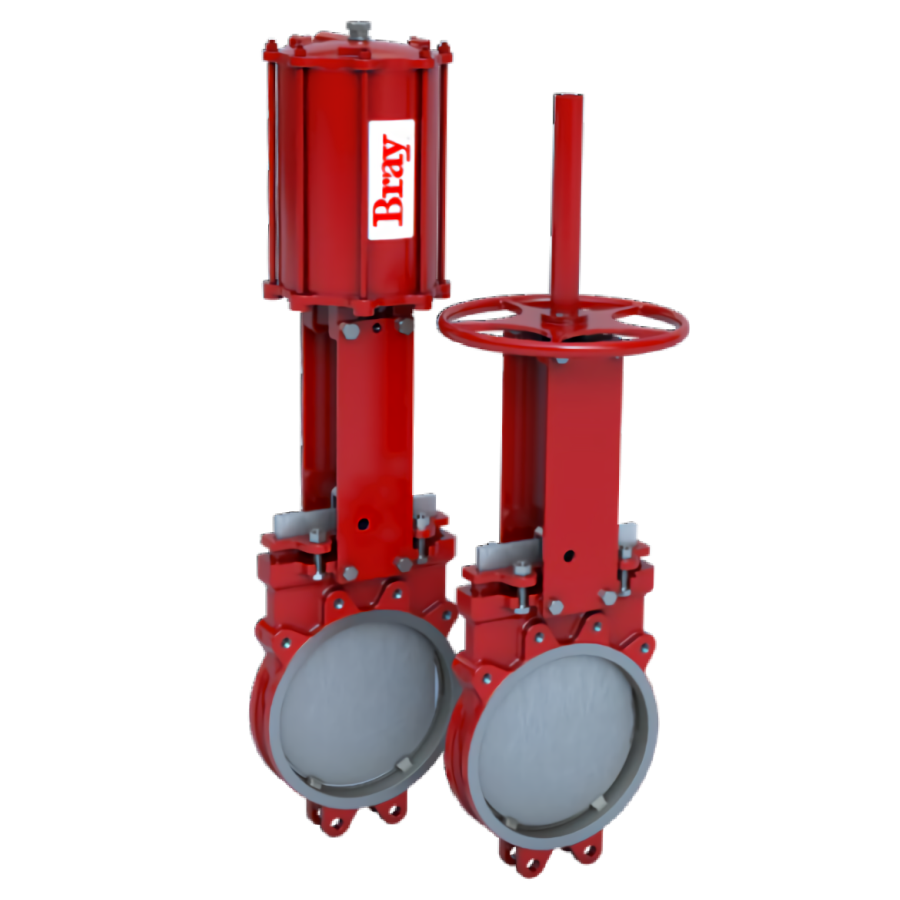

 The Knife Gate Valve Series 950 unidirectional are designed with a single-piece, cast body design housed within a cost-effective semi-lug body.

 With integral metal or replaceable soft seats, configuration can be tailored to specific application requirements. This customizable feature ensures that the valve seamlessly adapts to different operating conditions, from wastewater treatment plants to mining operations, pulp & paper facilities, and the food & beverage industry.Adhering to the highest quality standards, each Series 950 Knife Gate Valve undergoes rigorous testing, including shell and seat tests per MSS SP-151, as well as factory cycle tests. Pressure ratings for our products include Uni-Directional specifications, with 2" – 12" at 150 psi (DI body), 14" – 24" at 75 psi (DI body), and 2" – 24" at 150 psi (steel body).

 Our approvals and certifications encompass CRN, PED – Category I Module A, and AWWA C520 compliance. Explore optional features like Gate Guards, Deflection Cone, Open/Closed Lockouts, Limit Switches, Solenoid Valves, and Fail-Safe Systems for enhanced functionality.

• Integral metal seat or optional resilient, zero-leakage seat.
• Gate design ensures consistent alignment throughout the length of the stroke.
• Clevis design and horizontal bolting stabilizes gate ensuring proper alignment.
