Mixing technologies
Mixing technologies
high-performance
dispersants and colloidal mixers

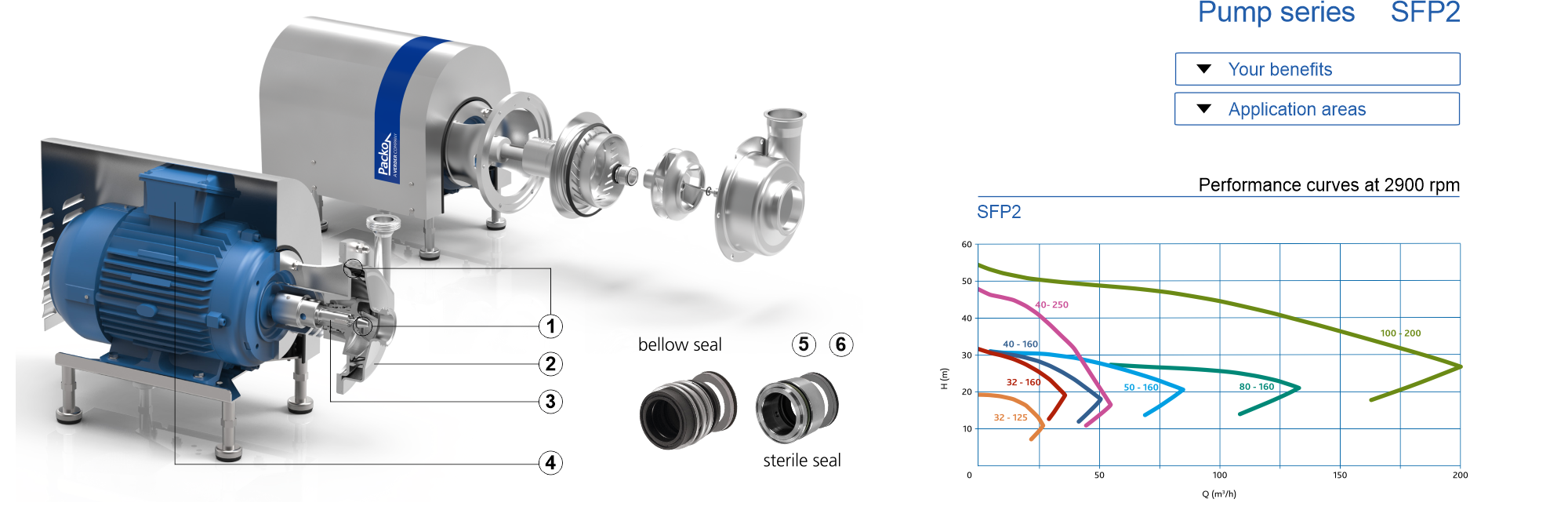

High Shear pump series SFP2
1. Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
2. Pressed stainless steel in 2B quality plate, extremely smooth
3. Large seal cavity to clean mechanical seal properly
4. Monobloc execution with std. IEC motors
5. Standardized mechanical seals to EN 12756 FDA approved bellow mechanical seals or sterile O-ring seals (spring not in contact with the liquid)
6. 2 seal diameters for the entire range: - SFP2: Ø 33 mm - SFP3: Ø 43 mm
- Shear rates up to 100.000 s-1
- Highest efficiency on the market, energy saving
- Use of std. components
- Self pumping
- Hygienic design, so easy to clean
- Easy installation and maintenance
- Very quiet operation
The Packo shear mixer pump is mainly used for in-line mixing, homogenisation and dispergation applications.
Max. flow rate
80 m3/h
Max. pressure
Inlet: 10 bar
Max. temperature
140°C
Max. liquid viscosity
1000 µПа•с
Impeller type
Open
Max. motor power
2.2 kW
Max. speed
3600 rpm
Connections
Hygienic fittings
Surface finish
Electropolished 0.8 μm
Packo SFP2 mixing pump with open impeller and patented stator, moderate flow and pressure. The shift is created between the rotor and the innovative and optimized perforated stator. The shift can be optimized and increased by increasing the rotation speed. A shear rate of up to 100,000 s-1 can be achieved at a maximum speed of 3600 rpm. The Packo SFP2 mixing pump is mainly used for in-line mixing, homogenization and dispersion.
|
Mixing of two liquids: |
Also dispersing of: |
|
|
High Shear pump series SFP3
1. Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
2. Pressed stainless steel in 2B quality plate, extremely smooth
3. Large seal cavity to clean mechanical seal properly
4. Monobloc execution with std. IEC motors
5. Standardized mechanical seals to EN 12756 FDA approved bellow mechanical seals or sterile O-ring seals (spring not in contact with the liquid)
6. 2 seal diameters for the entire range: - SFP2: Ø 33 mm - SFP3: Ø 43 mm
- Shear rates up to 100.000 s-1
- Highest efficiency on the market, energy saving
- Use of std. components
- Self pumping
- Hygienic design, so easy to clean
- Easy installation and maintenance
- Very quiet operation
The Packo shear mixer pump is mainly used for in-line mixing, homogenisation and dispergation applications.
Max. flow rate
200 m3/h
Max. pressure
Discharge: 10 bar
Max. temperature
140°C
Max. liquid viscosity
1000 µПа•с
Impeller type
Closed
Max. motor power
4.5 kW
Max. speed
3600 rpm
Connections
Hygienic fittings
Surface finish
Electropolished 0.8 μm
Packo SFP3 mixing pump with open impeller and patented stator, moderate flow and pressure. The shift is created between the rotor and the innovative and optimized perforated stator. The shift can be optimized and increased by increasing the rotation speed. A shear rate of up to 100,000 s-1 can be achieved at a maximum speed of 3600 rpm. The Packo SFP3 mixing pump is mainly used for in-line mixing, homogenization and dispersion.
Mixing of two liquids: | Also dispersing of: |
|
|

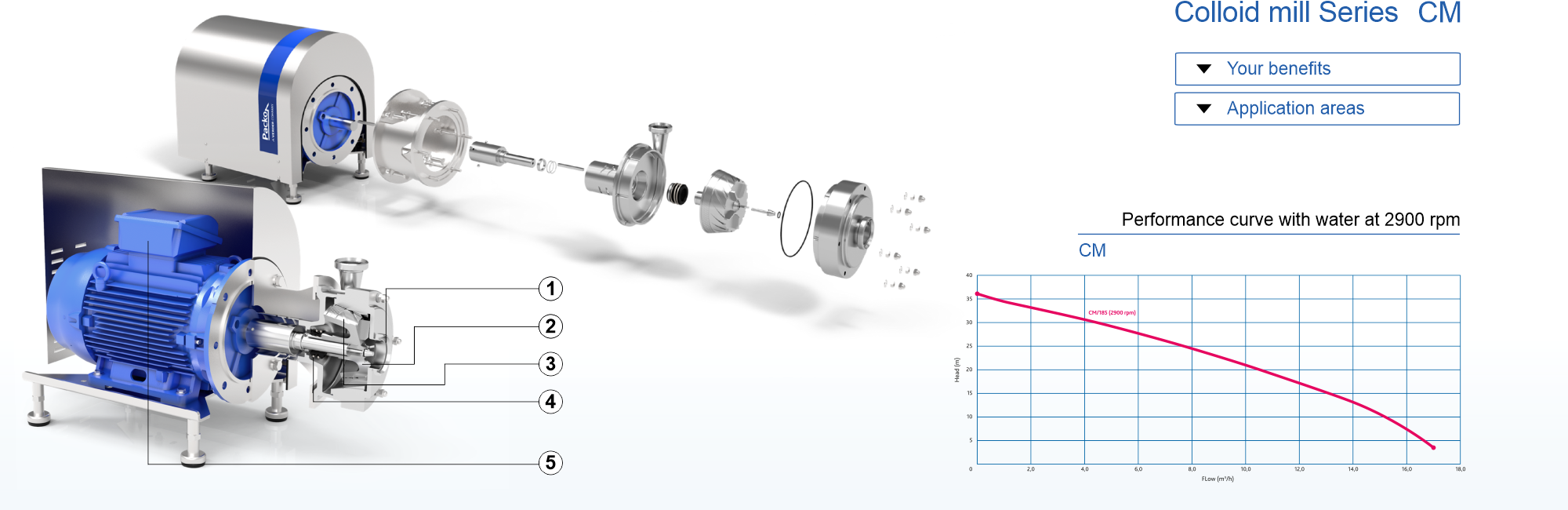

Colloid mill Series CM
1. Adjustable milling gap between rotor and stator
2. Integrated centrifugal impeller
3. Helicoidal rotor grooves
4. Standardized mechanical seals to EN 12756
5. Monobloc execution with std. IEC motors
- Electropolished 316L and duplex stainless steel: highly corrosion resistant and perfectly cleanable
- Adjustable milling gap between rotor and stator allows optimal setting for every product
- Easy robust construction and easy maintenance: less downtime
- Standardized seals guaranteeing worldwide easy availability and low spare parts prices
- Low noise level thanks to helicoidal rotor grooves
- Rotor with integrated centrifugal impeller improves suction capability and creates additional discharge pressure
The Packo CM colloid mill is used for a wide range of purposes in the production line in the general food, fruit & vegetable and cosmetic industry. The principal applications are wet size reduction of solids in suspension, pulping and mashing of bulky solids and generation of high viscous suspensions and emulsions.
Max. flow rate
15 m3/h
Max. pressure
10 bar
Max. temperature
140°C
Max. liquid viscosity
100.000 µПа•с
Materials wetted parts
Stainless steel 316L and duplex
Max. motor power
4.5 kW
Max. speed
3600 rpm
Connections
Hygienic fittings
Surface finish
Hygienic quality, electropolished
CM is a hygienic colloidal mill with a toothed rotor and a stator made of electropolished duplex stainless steel. They are used for precise grinding of particles in suspension with reproducible results in the annular gap between the stator and the rotor, which can be adjusted by changing the axial position of the rotor. The rotor and stator contain 2 grinding zones, and due to the high shear forces between the rotor and stator, the CM will also mix the liquid.
The Packo CM colloid mill is used for a wide range of production line purposes in the general food, fruit and vegetable and cosmetics industries. Main applications: wet crushing of solids in suspension, cooking and crushing of bulk solids and production of highly viscous suspensions and emulsions.
